RadioMaster Zorro Radio - The Compact Class-Leader.

Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

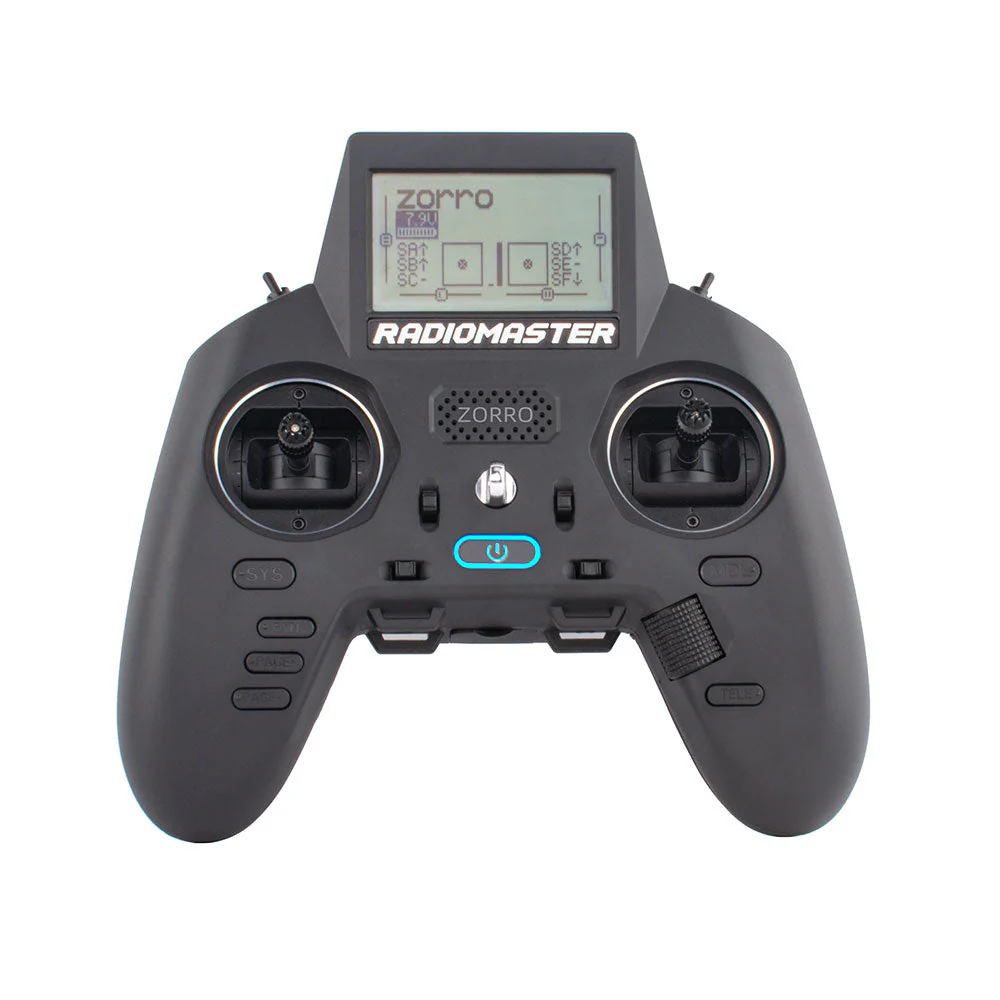

Zorro radio controller

Specification

Versions	CC2500	4in1	ELRS	ELRS Starter Set	CC2500 + TBS Nano Crossfire Combo

Physical Dimensions	170159108mm
Weight	350 grams
Operating Frequency	2.400GHz-2.480GHz
Internal RF Options	CC2500 multi-protocol	4-in-1 multi-protocol	ELRS		CC2500 multi-protocol
Supported Protocols	Module dependent	Module dependent	ELRS		Module dependent
Antenna Gain	Folding 2db
Operational Current	160mA@8.4V
Operational Voltage	6.6-8.4v DC
Control Distance	> 2km	> 2km	Receiver and Power Output dependant		> 2km
Operating system	OpenTX / EdgeTX Compatible
Control channels	Maximum 16 (Rx dependent)
Display	128*64 Monochrome LCD
Battery	2 x 18350 (Not included)
Charging	Built in USB-C Charging
Gimbal	X4 Hall-effect gimbals (AG01 Mini compatible)
Module Bay	Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
Firmware Upgrade Method	Via USB or SD card

Click to check the RadioMaster Radio Comparison Chart.

FCC Version and EU LBT Version are Available

Currently, we provide the standard FCC version and the EU LBT version. Please check the supported protocols below.

Standard FCC Version

CC2500 (FCC) Version supports all CC2500 protocols
4in1 (FCC) Version supports all MPM protocols
ELRS (FCC) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependant)

EU LBT Version

CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

radiomaster zorro radio OPENTX EDGETX radiomaster zorro radio controller radiomaster hall gimbals Zorro Radio Controller (M2) RadioMaster Zorro Radio oversized LCD RadioMaster Zorro Radio DIY Attachment Points

Download

ZORRO Radio User Manual

Accessories

18350 900mah Battery
RP1 ExpressLRS 2.4ghz Nano Receiver
RP2 ExpressLRS 2.4ghz Nano Receiver
Carry Case for Zorro Radio
XT30 to JST 3 Pin connector for Zorro Radio

Package Includes

Please note, when you choose a different version, it is packaged with different parts.

The chart below doesn't mean you will receive all versions.

Version	Package Includes
CC2500	1 * Zorro Radio Controller CC2500 Version
4-in-1	1 * Zorro Radio Controller 4-in-1 Version
ELRS	1 * Zorro Radio Controller ELRS Version

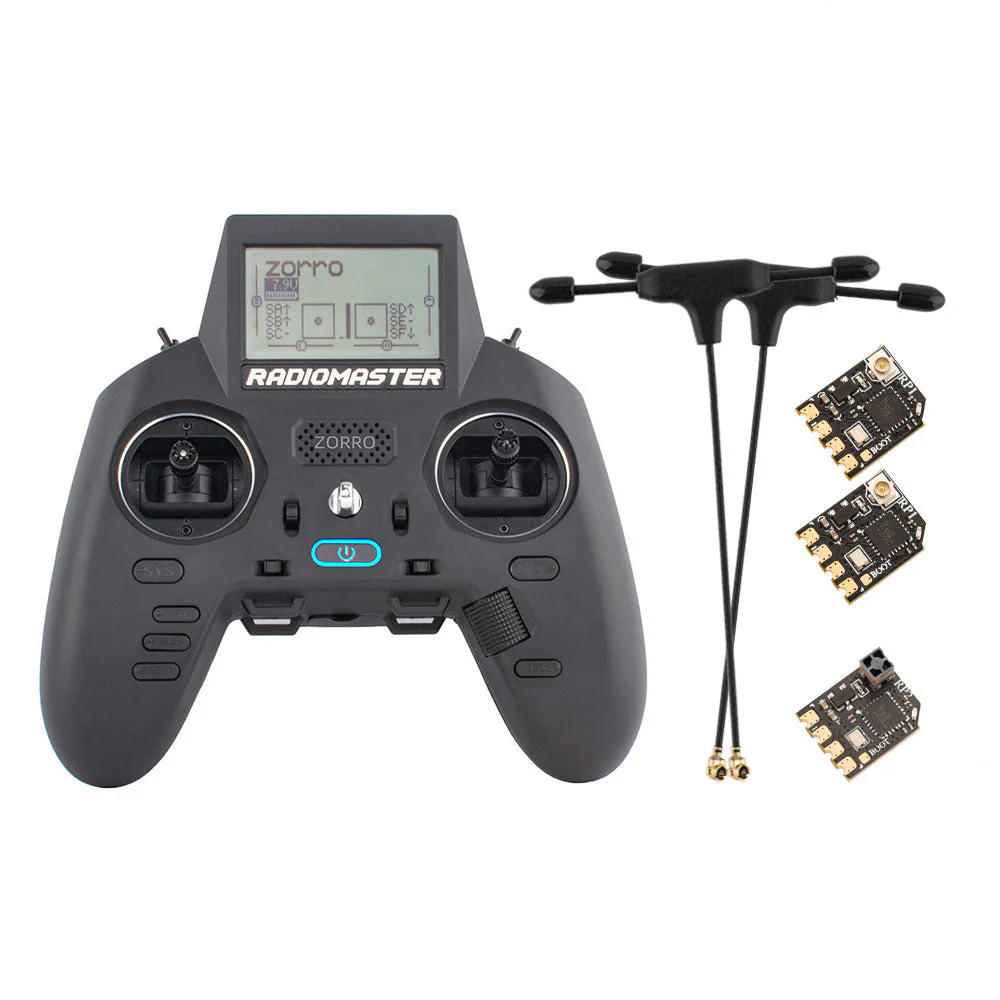

ELRS Starter Set	1 * Zorro ELRS Radio Control 2 * RP1 ExpressLRS 2.4ghz Nano Receiver 1 * RP2 ExpressLRS 2.4ghz Nano Receiver
CC2500 + TBS Nano Crossfire Combo	1 * Zorro Radio Controller CC2500 Version 1 * TBS Nano Crossfire Module

Zorro is now compatible with mLRS!

The mLRS project offers an open-source, high-performance radio system based on LoRa technology, operating at 2.4 GHz, 915/868 MHz, and 433 MHz/70 cm, designed to deliver a secure, reliable, and robust link under any conditions.
mLRS is designed with MAVLink and MSP optimization in mind, while also providing a transparent serial link, making it suitable for a wide range of applications. Its design ensures the strongest possible signal integrity while maintaining a relatively high data rate, balancing performance and reliability without compromise.

Find out more about mLRS here
Visit the online mLRS Web Flasher here
